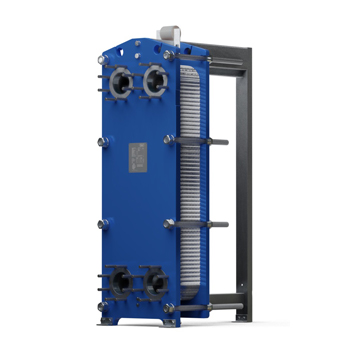

Danfoss Sondex Gasketed Heat Exchangers
Danfoss SONDEX® standard plate heat exchangers are the ideal choice for a wide range of applications across numerous market segments. Innovative technologies and smart design make our standard plate heat exchangers a stellar investment and the go-to choice for standard duties.
We have one of the largest plate portfolios in the world and we customize each heat exchanger to meet your exact requirements. The versatile design and high thermal efficiency make them the perfect solution for a wide range of applications.
Features and benefits
Experience the benefit of an individually customized solution that perfectly matches your requirements and lowers your energy consumption.
High performance and a low pressure drop eliminate unnecessary burdens on your system and optimize overall system performance.
We design single-pass solutions when possible, as they are the preferred choice for almost all duties. With all connections on the head you do not need to disconnect the heat exchanger from the piping to perform inspection, cleaning, or service.
The design results in a compact solution with a small footprint, simple installation, and easy access for maintenance.
Technical specifications
Conections from DN25 to DN600 (1" to 24")
Frames designed according to FEA and PED 2014/68/EU (EN13445) and ASME sec VIII, Div. 1 construction standards
Plate materials: AISI 304/316, titanium, SMO, Hastelloy*
Gasket materials: EPDM-HT, NBR-HT, Viton*
Plate lengths up to 5.5 m (18 ft)
Flow rates up to 7,200 m3/h (31,700 gpm)
Working pressure up to 35 bar (500 psi)
Working temperatures from -20 °C to 180 °C (-4 °F to 356 °F)
*Other materials are available upon request.
Applications
HVAC industry
Marine/offshore industry
Dairy/food/beverage industry
Sugar industry
Biogas industry
Pulp and paper industry
Heavy industry
Mining industry
Petrochemical industry
Chemical industry
