032U3833 - Danfoss EV245B 15BG 12T NC 000 Solenoid Valve - M and M Controls
032U3833 Valve EV245B 15B G 12T NC000
£222.60
£185.50
SKU/MPN
032U3833
Availability: See "More Information" below
(032U3833) - Danfoss EV245B 15BG 12T NC 000 Solenoid Valve
Body only
Function - Normally closed
Ports - G1/2"
Orifice - 15mm
Pressure range - 0.1 - 10 bar
Temp Range: -10 to 185°C (AC), -10 to 165° C (DC)
Body - Brass
Internal parts - Stainless steel / brass
Seal Material - PTFE
Suitable coils - BQ
Danfoss EV245B (EVJHS 15/20) are heavy duty servo-operated valves for steam.
For applications with steam up to 10 bar and because of the high temperature involved - up to 185ºC - it is necessary to use special materials.
EV245B - EVJHS valves incorporated such heat-resistant materials, together with a special coil.
The valves are available in sizes 1/2" (032U3833) and 3/4" (032U3853) and like the other servo-operated valves the design principle with pilot orifice, equalising orifice and servo piston is the same.
EVJHS valves are offered in normally closed versions.
• Max. media temperature: 185ºC
• Max. ambient temperature 40ºC with 185ºC media temperature
• Differential pressure 0.1 to 10 bar
• Gasket materials: stainless steel , PFTE
• Test pressure: max. 25 bar

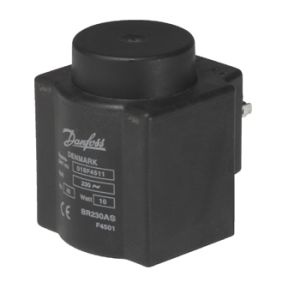

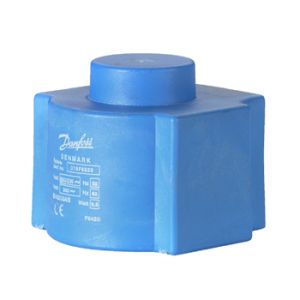

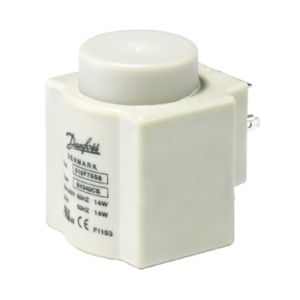

Coil type BQ can be used on EV245B.
| Price Ex VAT | £185.50 |
|---|---|
| Product Name | 032U3833 Valve EV245B 15B G 12T NC000 |
| SKU/MPN | 032U3833 |
| Stock Status | Usually Ships Sameday |
| Timed Deliveries | Timed Deliveries Available On This Product |
| Weight KG | 0.739000 |
| GTIN/UPC/EAN | 5702428481656 |
| Tariff code | 8481 8079 |
| Brand | DANFOSS |
| Country of Origin | (EU) |
| UK Shipping Ex. VAT | £8.50 |
