032U6526 - Danfoss EV220B 22B N1F NC 000 Solenoid Valve - M and M Controls
032U6526 Valve EV220B 22B N 1F NC000
£123.37
£102.81
SKU/MPN
032U6526
Availability: See "More Information" below

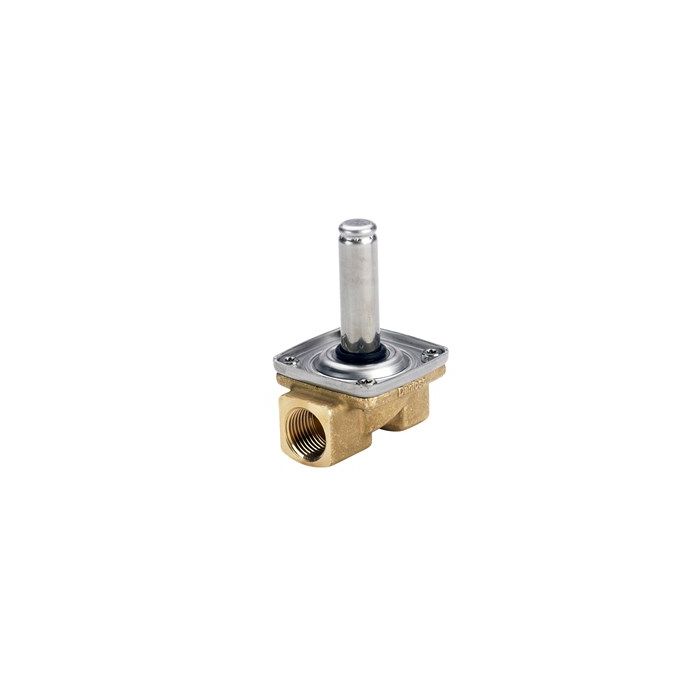

(032U6526) - Danfoss EV220B 22B N 1F NC 000 Solenoid Valve
Body Only
Coil Types: BA, BD, BB, BG
Function: 2-Way NC
Body Material: Brass
Seal Material: VITON
Pipe Size: 1 NPT ANSI/ASME B1.20.1
Orifice: 22mm
Temp Range: 0 to 100°C
Differential Pressure Ranges:- 0.3 to 10 Bar (AC), 0.3 TO 10 Bar (20WDC) Coils
Danfoss solenoid valve EV220B 6-22 is a direct servo-operated 2/2-way solenoid valve program with connections from 1/4" to 1".
This program is especially for OEM applications demanding a robust solution and moderate flow rates.
• 2/2-way
• Servo-operated
• DN 6 - DN 22
• Brass or DZR (de-zincification resistant) brass valve body
• NC (normally closed) and NO (normally open) versions
• ISO 228/1 or NPT thread connection (EVSI and EVSI-U)
| Price Ex VAT | £102.81 |
|---|---|
| Product Name | 032U6526 Valve EV220B 22B N 1F NC000 |
| SKU/MPN | 032U6526 |
| Product Code | EV220B |
| Stock Status | Usually Ships in 2 weeks |
| Timed Deliveries | PLEASE DO NOT SELECT TIMED DELIVERIES FOR THIS PRODUCT - CALL +44 (0)1772 699 999 If Urgent |
| Weight KG | 0.892000 |
| GTIN/UPC/EAN | 5702423031702 |
| Tariff code | 8481 8079 |
| Brand | DANFOSS |
| Country of Origin | (EU) |
| UK Shipping Ex. VAT | £8.50 |
