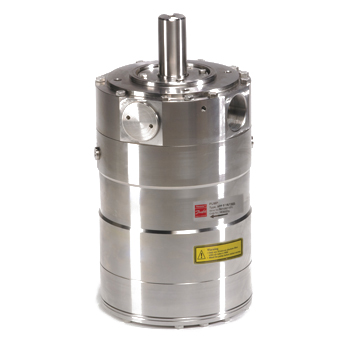

APP11 - 13 Water Pumps for Desalination

Danfoss APP 11-13 pumps are designed to supply low viscosity and corrosive fluids under high pressure, e.g. in seawater reverse osmosis filtration applications and for high pressure salt water pumping.

The pumps are based on the positive displacement principle (axial piston design) which enables a very light and compact design, and they are designed so that the lubrication of the moving parts in the pumps is provided by the fluid itself. No oil lubrication is thus required.
The pumps are supplied with an integrated flushing valve that allows the salt water to flow from inlet to the outlet, when the pump is not running.
All parts included in the pumps are designed to provide long service life, i.e. long service life with a constantly high efficiency and minimum service required.
The pumps are fixed displacement pumps in which the flow is proportional to the number of revolutions of the input shaft and the pump displacement.

For the complete range of Danfoss APP 11 - 13 Salt Water Pumps go to our dedicated website: High Pressure Water Equipment - APP 11 - 13 Pumps



APP Pumps APP11 / 1200APP11 / 1500APP13 / 1200APP13 / 1500
Code Number 180B3212180B3211180B3214180B3213
Geometric Displacement cm3/rpm (in3/rpm) 166(10.1) 137(8.4) 197(12) 166(10.1)
Rated Flow (3000rpm) *1 m3/h (gpm) 11(48.4) 11.1(49) 13.1(57.7) 13.5(59.3)
Outlet Min. Pressure *2 bar (psi) 30(435) 30(435) 30(435) 30(435)
Outlet Max. Pressure, Continuous *3 bar (psi) 80(1160) 70(1015) 80(1160) 70(1015)
Inlet Min. Pressure bar (psi) 2(29) 2(29) 2(29) 2(29)
Inlet Max. Pressure, Continuous bar (psi) 5(72.5) 5(72.5) 5(72.5) 5(72.5)
Inletmax. Pressure, Peak bar (psi) 10(145) 10(145) 10(145) 10(145)
Max. Speed Continuous rpm 1200 1500 1200 1500
Min. Speed Continuous rpm 700 700 700 700
Power Req. at 80 bar and 3000rpm kW (hp) 23(30.8) 24(32.2) 27(36.2) 29(38.9)
Torque at 80 bar Nm (lbf-ft) 183(135) 151(111.4) 217(160.1) 183(135)
Weight Kg (lb) 75(165) 76(165) 77(165) 78(165)
Integrated Flushing Valve - YES YES YES YES

*1 Typical average flow at 60 bar (870 psi)
*2 For lower pressure, please contact M&M Controls
*3 For higher pressure, please contact M&M Controls


Technical Data Sheet

Pumps APP11 - 13  -  Download pdf (1.8mb)
