Danfoss APP 0.6, APP 0.8 and APP 1.0 pumps are designed to supply low viscosity and corrosive fluids under high pressure, e.g. in seawater reverse osmosis filtration applications and for high-pressure salt water pumping.
The pumps are based on the axial piston principle enabling a very light and compact design. The design ensures that lubrication of the moving parts in the pumps is provided by the fluid itself. No oil lubrication is thus required.
All parts included in the pumps are designed to provide long service life, i.e. long service life with a constantly high efficiency and minimum of service required.
The pumps are fixed displacement pumps in which the flow is proportional to the number of revolutions of the input shaft and the pump displacement, regardless of any counter-pressure.
The pumps are supplied with an integrated flushing valve that allows the salt water to flow from inlet to the outlet, when the pump is not running.

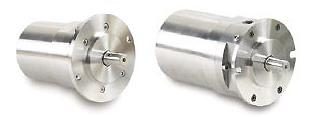

Danfoss APP Compact Pumps
Benefits
• One of the smallest and lightest pumps on the market.
• Can be powered by a combustion engine provided that a special coupling is used.
• Long service life / No preventive maintenance required in the warranty period.
• Generates insignificant pulsations in the pressure line.
• No oil lubricant.
• Integrated flushing valve
• All parts of the pump are made of non-corrosive materials eg. Duplex (SAF 2205/EN1.4462/UNS S31803-S32205) and Super-duplex (SAF 2507/EN1.4410/UNS S32750) stainless steel and carbon reinforced PEEK
• High efficiency
For the complete range of Danfoss APP 0.6 - 1.0 Salt Water Pumps go to our dedicated website: High Pressure Water Equipment - APP 0.6 - 1.0 Pumps
| APP Pumps (Compact) | APP0.6 | APP0.8 | APP1.0 | |
|---|---|---|---|---|
| Code Number | 180B3040 | 180B3041 | 180B3042 | |
| Geometric Displacement | cm3/rpm (in3/rpm) | 4(0.24) | 5.07(0.31) | 6.3(0.38) |
| Rated Flow (3000rpm) *1 | m3/h (gpm) | 0.6(2.6) | 0.8(3.5) | 1.0(4.4) |
| Outlet Min. Pressure *2 | bar (psi) | 20(290) | 20(290) | 20(290) |
| Outlet Max. Pressure, Continuous *3 | bar (psi) | 80(1160) | 80(1160) | 80(1160) |
| Outlet Max. Pressure, Intermittent *4 | bar (psi) | 100(1450) | 100(1450) | 100(1450) |
| Inlet Min. Pressure | bar (psi) | 0.5(7.25) | 0.5(7.25) | 0.5(7.25) |
| Inlet Max. Pressure, Continuous | bar (psi) | 5(72.5) | 5(72.5) | 5(72.5) |
| Inletmax. Pressure, Peak | bar (psi) | 5(72.5) | 5(72.5) | 5(72.5) |
| Max. Speed Continuous *5 | rpm | 3450 | 3450 | 3450 |
| Min. Speed Continuous | rpm | 700 | 700 | 700 |
| Power Req. at 80 bar and 3000rpm | kW (hp) | 1.9(2.4) | 2.4(3.3) | 2.9(3.9) |
| Torque at 80 bar | Nm (lbf-ft) | 6.37(4.6) | 8.07(5.8) | 10.03(7.3) |
| Weight | Kg (lb) | 2.9(6.4) | 2.9(6.4) | 2.9(6.4) |
| Integrated Flushing Valve | - | YES | YES | YES |
| *1 Typical average flow at 80 bar (1160 psi) | ||||
| *2 For lower pressure, please contact M&M Controls | ||||
| *3 For higher pressure, please contact M&M Controls | ||||
| *4 Intermittent pressure is acceptable for less than 10 seconds per minute | ||||
| *5 For speeds above 3000rpm the pump must be boosted at a pressure of 1-5 bar (14.5 - 72.5 psi) | ||||
| APP Pumps | APP0.6 | APP0.8 | APP1.0 | |
|---|---|---|---|---|
| Code Number | 180B3048 | 180B3037 | 180B3049 | |
| Geometric Displacement | cm3/rpm (in3/rpm) | 4(0.24) | 5.07(0.31) | 6.3(0.38) |
| Rated Flow (3000rpm) *1 | m3/h (gpm) | 0.6(2.6) | 0.8(3.5) | 1.0(4.4) |
| Outlet Min. Pressure *2 | bar (psi) | 20(290) | 20(290) | 20(290) |
| Outlet Max. Pressure, Continuous *3 | bar (psi) | 80(1160) | 80(1160) | 80(1160) |
| Outlet Max. Pressure, Intermittent *4 | bar (psi) | 100(1450) | 100(1450) | 100(1450) |
| Inlet Min. Pressure | bar (psi) | 0.5(7.3) | 0.5(7.3) | 0.5(7.3) |
| Inlet Max. Pressure, Continuous | bar (psi) | 5(72.5) | 5(72.5) | 5(72.5) |
| Inletmax. Pressure, Peak | bar (psi) | 10(145) | 10(145) | 10(145) |
| Max. Speed Continuous *5 | rpm | 3450 | 3450 | 3450 |
| Min. Speed Continuous | rpm | 700 | 700 | 700 |
| Power Req. at 80 bar and 3000rpm | kW (hp) | 1.9(2.5) | 2.4(3.3) | 2.9(3.9) |
| Torque at 80 bar | Nm (lbf-ft) | 6.1(4.5) | 7.6(5.6) | 9.3(6.85) |
| Weight | Kg (lb) | 5.2(9.7) | 5.2(9.7) | 5.2(9.7) |
| Integrated Flushing Valve | - | YES | YES | YES |
| *1 Typical average flow at 80 bar (1160 psi) | ||||
| *2 For lower pressure, please contact M&M Controls | ||||
| *3 For higher pressure, please contact M&M Controls | ||||
| *4 Intermittent pressure is acceptable for less than 10 seconds per minute | ||||
| *5 For speeds above 3000rpm the pump must be boosted at a pressure of 1-5 bar (14.5 - 72.5 psi) | ||||
