Buy Danfoss 061B000466 MBC 5100-1211-1DB04 Pressure Switch Range: -0.2 to 4 bar

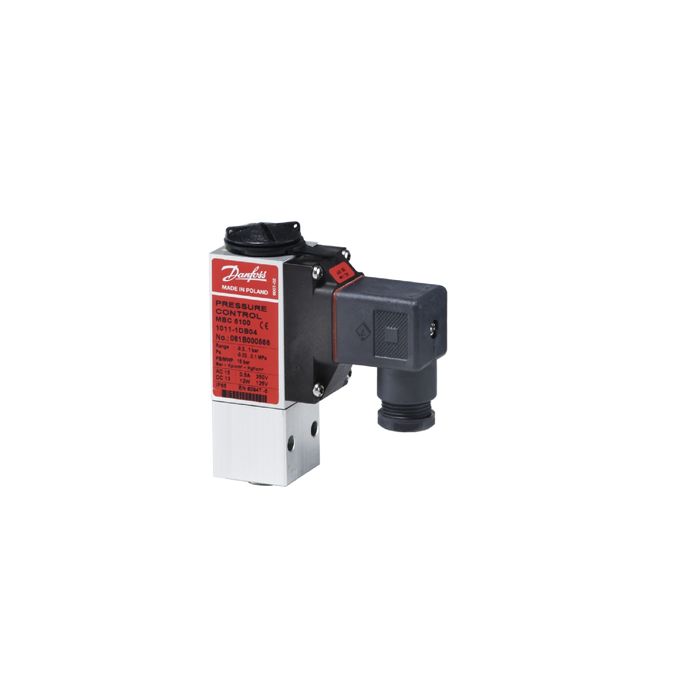

061B000466 MBC 5100-1211-1DB04 Danfoss Pressure Control -0.2 to 4 bar
061B000466 MBC 5100-1211-1DB04 Danfoss pressure switches are block design to survive in the harsh conditions known from machine rooms onboard ships
Regulating Range: -0.2 to 4 bar
Differential MIN Range: 0.3 bar
Differential MAX Range: 0.45 bar
Max. Working Pressure: 15 bar
Connection Size: Flange
Contact Function: SPDT
Electrical Connection:Pg 11 plug (DIN 43650 A)
Reset: Automatic

Danfoss pressure switches are used in marine applications where space and reliability are the most important features. MBCs are compact pressure switches, designed according to our new block design to survive in the harsh conditions known from machine rooms onboard ships.
MBC5100 have high vibration resistance and feature all commonly marine approvals. The fixed, but low differential guarantees accurate monitoring of critical pressures. MBV test valves can be delivered as standard option for MBC pressure switches.
All relevant marine approvals.
Price Ex VAT | £176.65 |
---|---|
Product Name | 061B000466 MBC 5100-1211-1DB04 Danfoss Pressure Control -0.2 to 4 bar |
SKU/MPN | 061B000466 |
Product Code | MBC5100 |
Specification key | MBC5100-1211-1DB04 |
Stock Status | Usually Ships Sameday |
Timed Deliveries | Timed Deliveries Available On This Product |
Weight KG | 0.200000 |
GTIN/UPC/EAN | 5702423213498 |
Tariff code | 9032 2000 |
Brand | DANFOSS |
Country of Origin | (EU) |
UK Shipping Ex. VAT | £8.50 |
